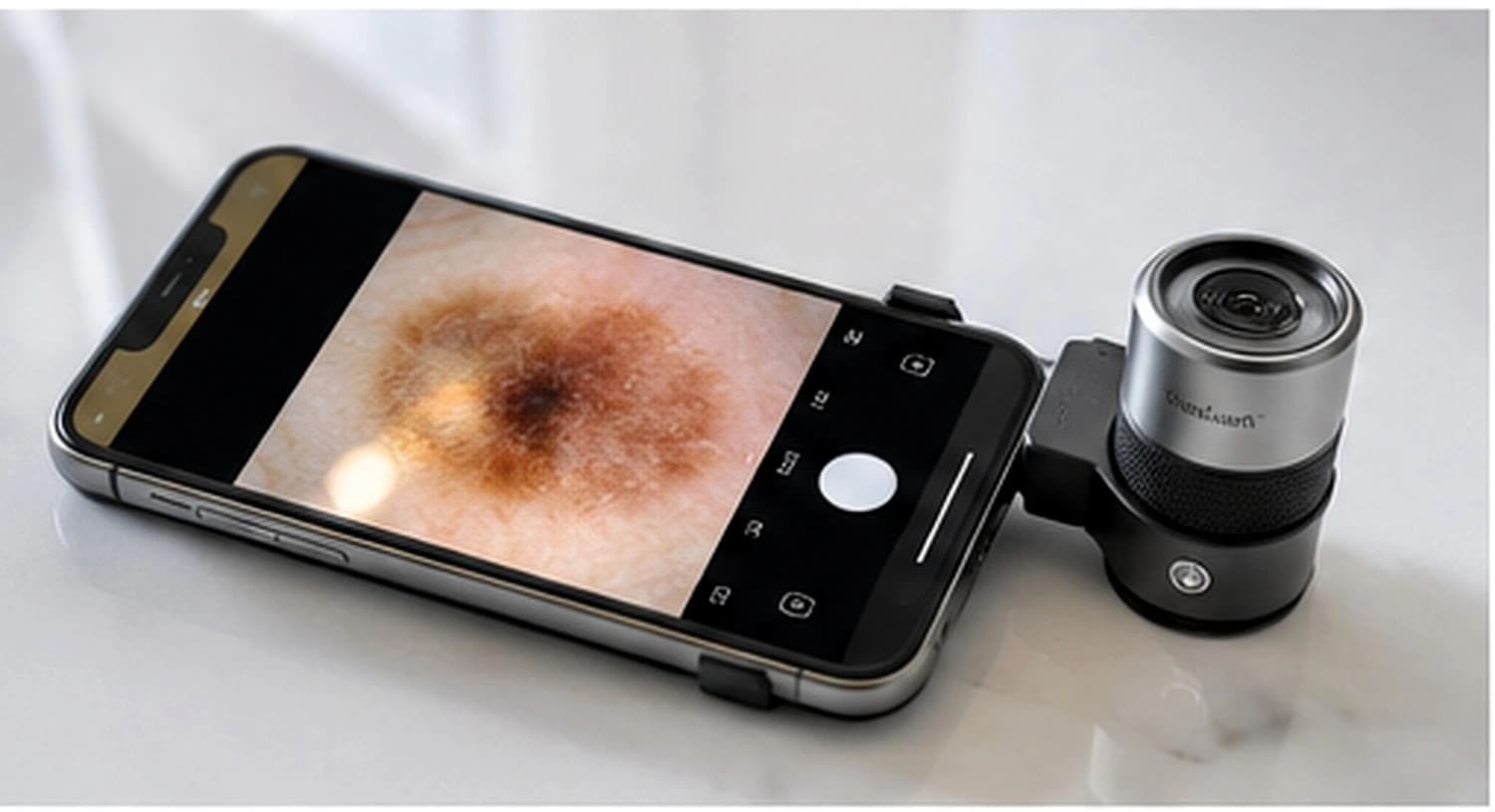

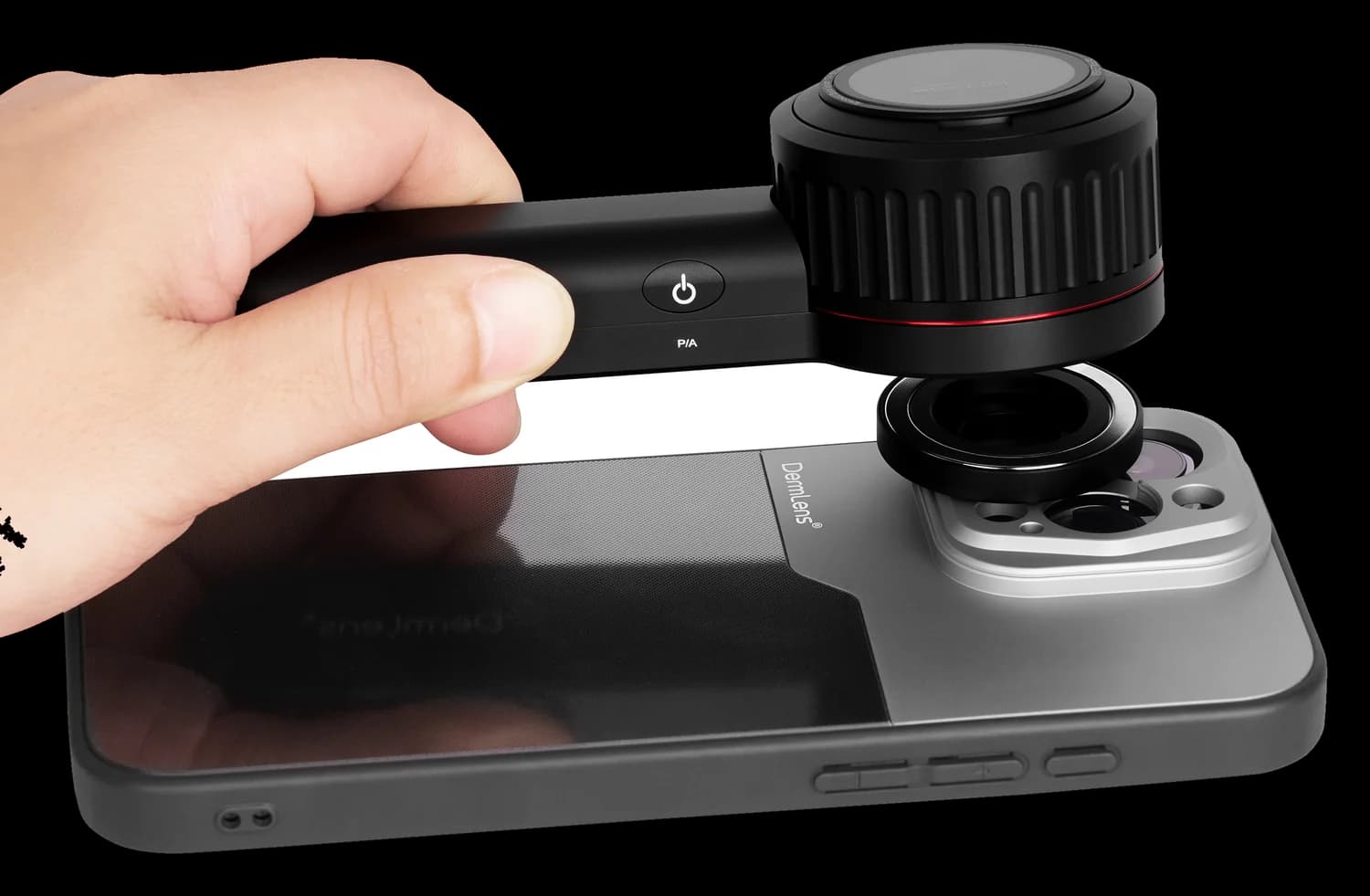

01 — Snap
Connect in seconds.
Connect M6 using the included universal smartphone adaptor — or snap it directly onto a compatible DermLens phone case.

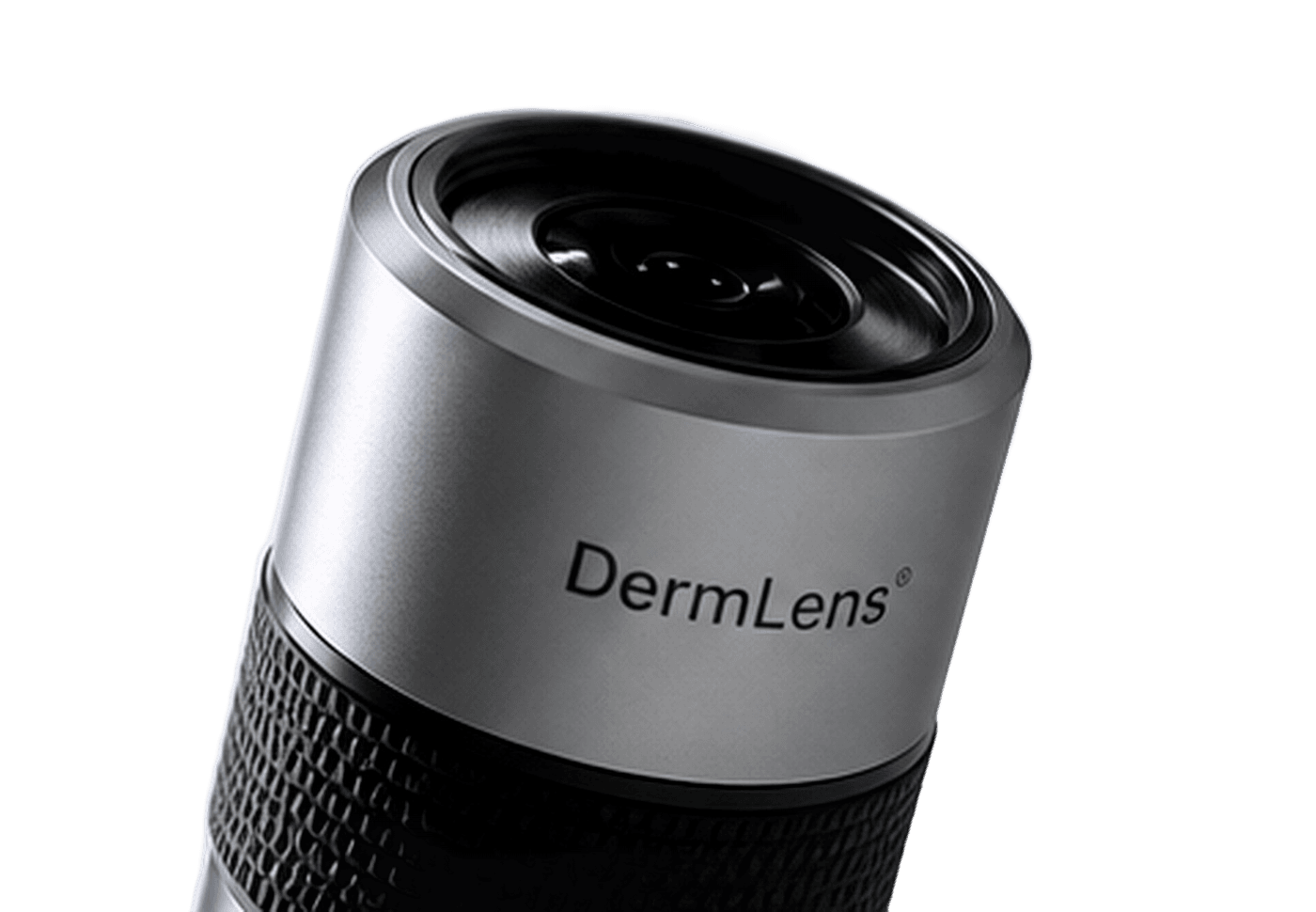

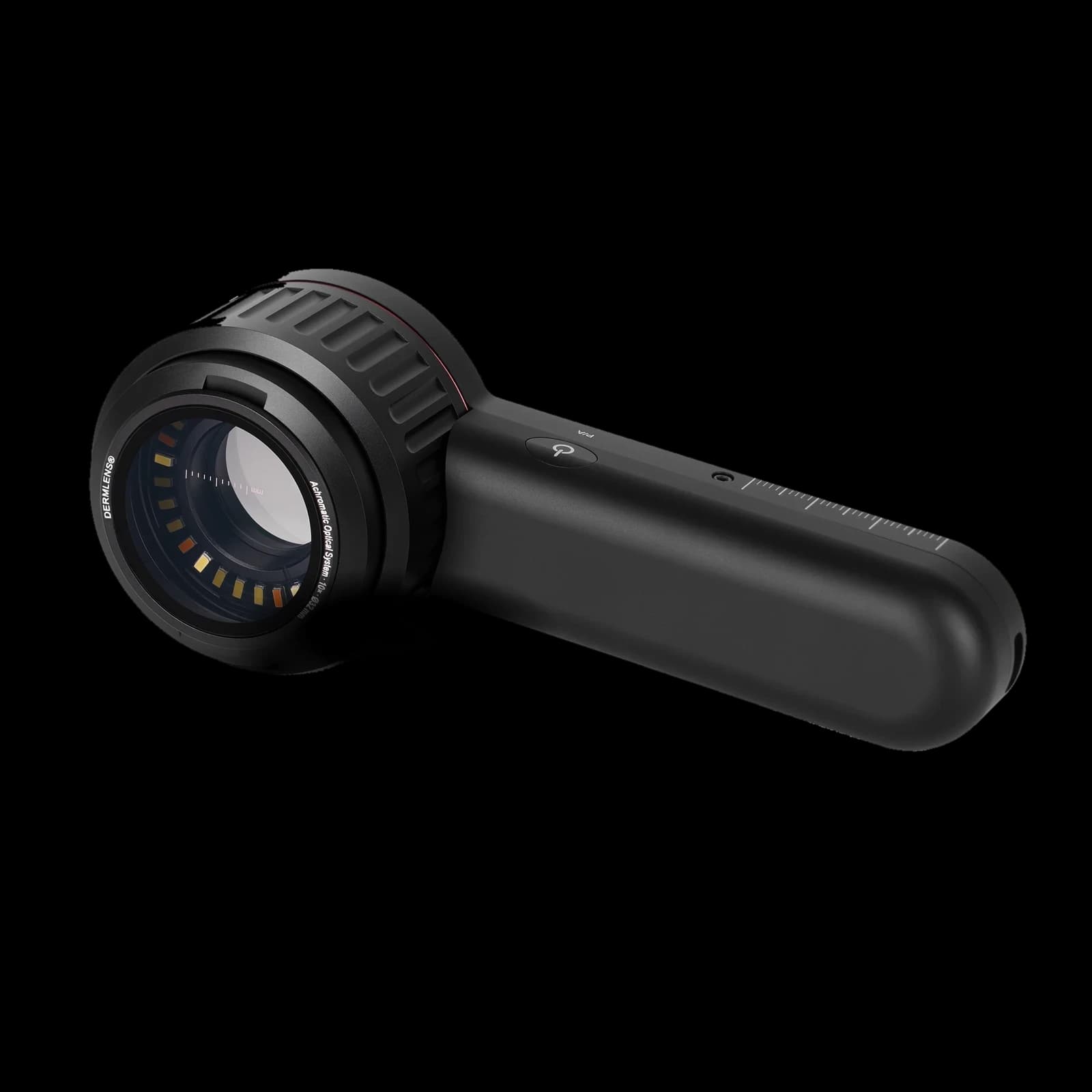

DermLens M6
Builtaroundthelens.
Professional 10× dermoscopy with a wide 30 mm optical lens, polarised, non-polarised and amber illumination, with seamless smartphone image capture.
Designed by dermatologists for clear visualisation, intuitive examination and effortless clinical documentation.

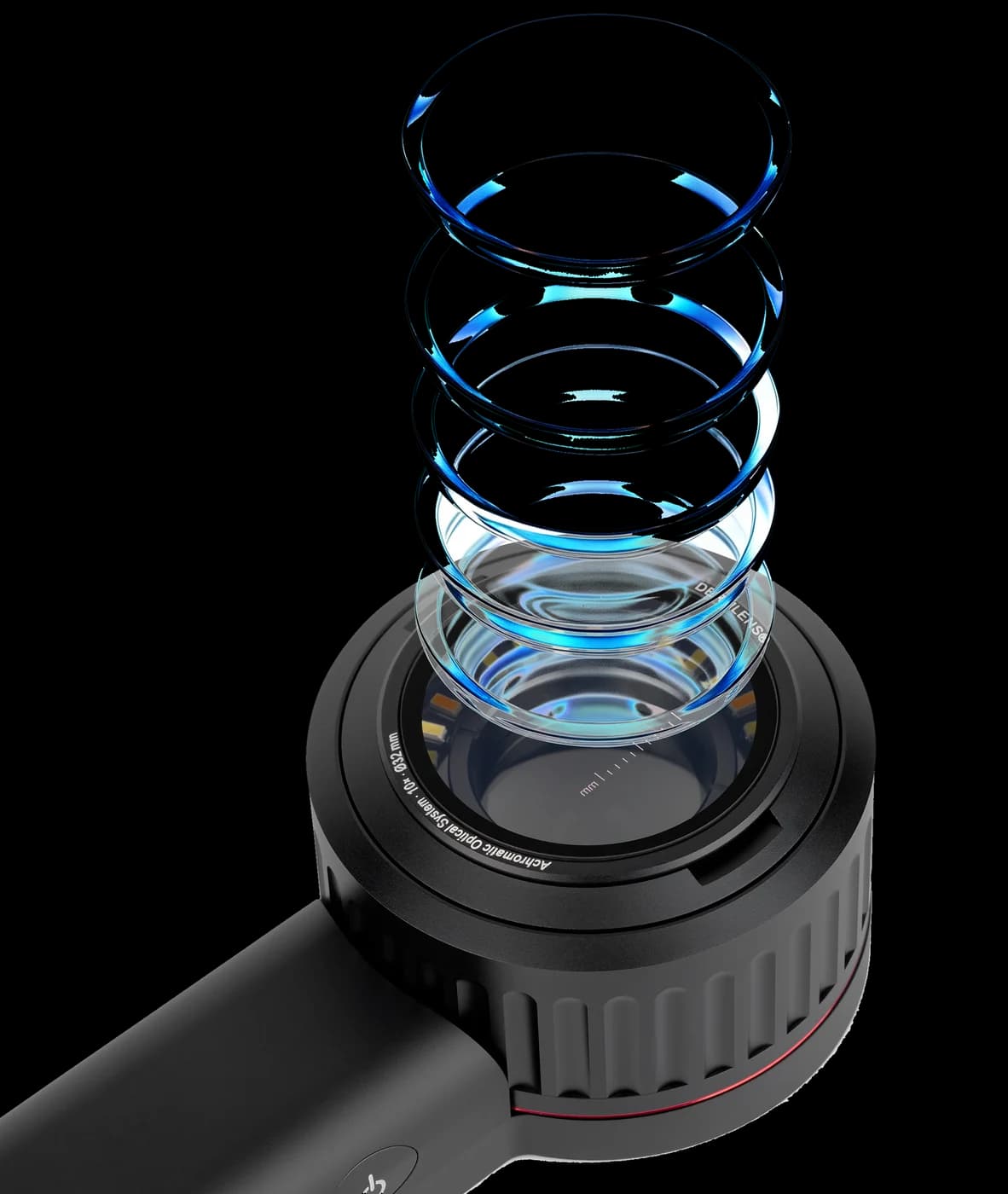

Precision optics
Clarity begins with glass.

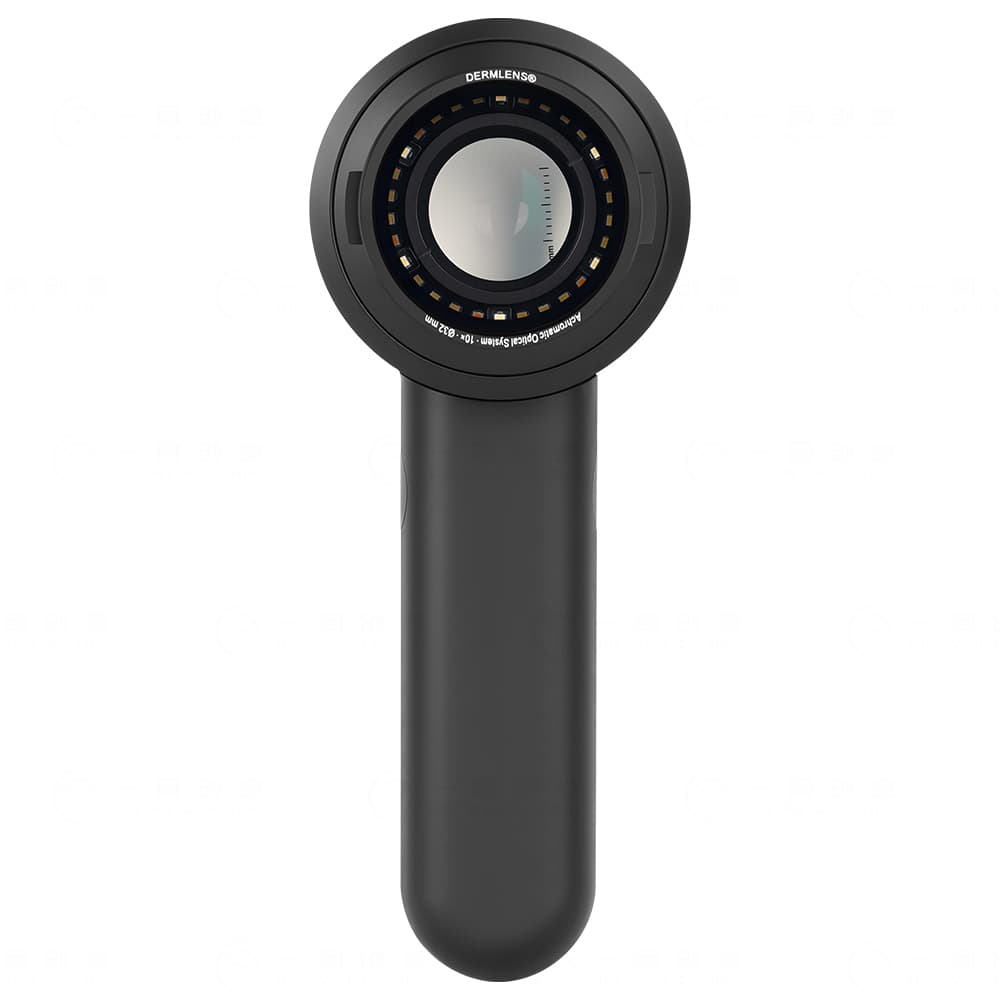

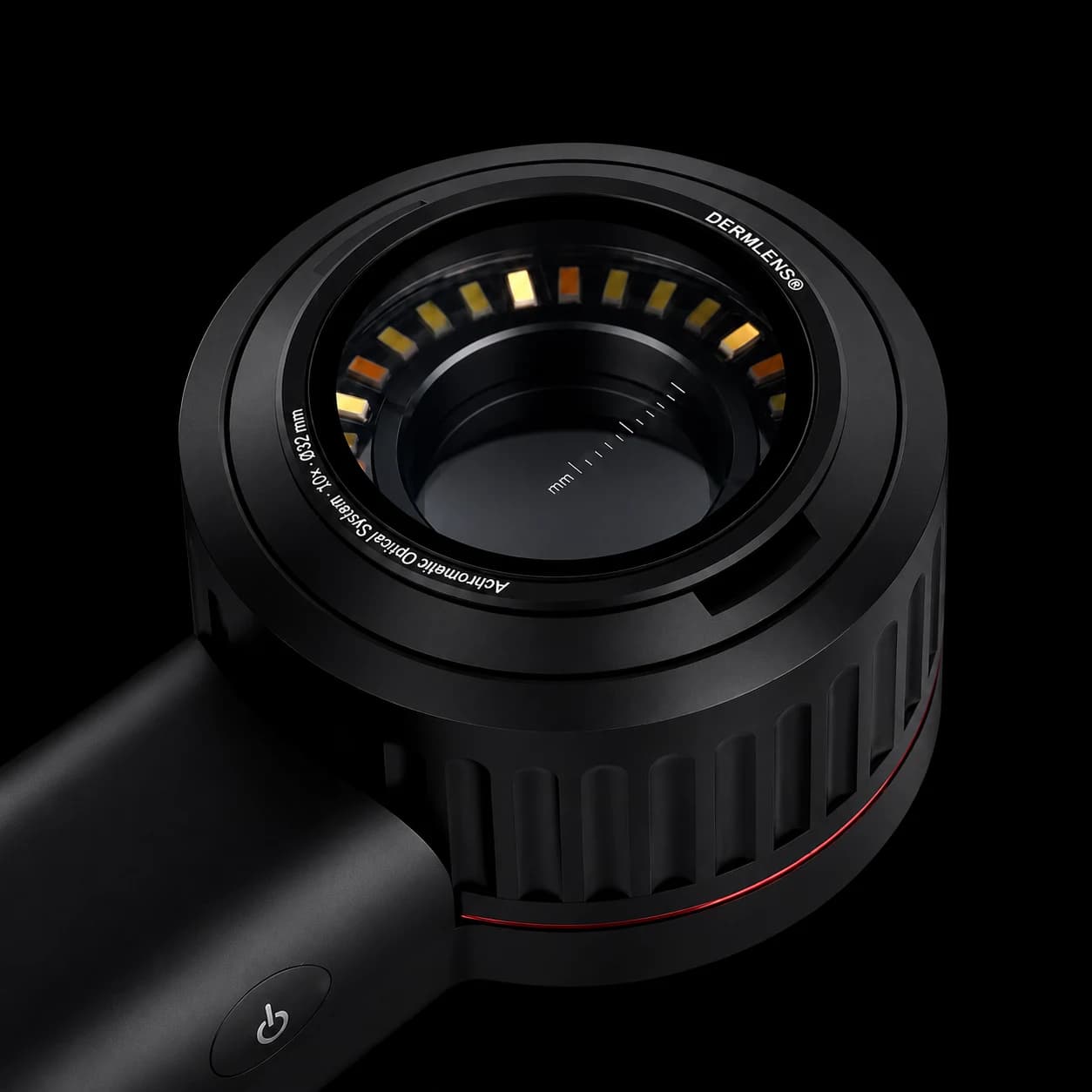

At the heart of DermLens M6 is a precision 30 mm optical system delivering 10× magnification and a wide, detailed dermoscopic view.
Designed for clear visualisation of the colours, structures and vascular features encountered in everyday dermoscopy — whether examining directly through the lens or capturing an image with a smartphone.
- 10×
- Optical magnification
- 30 mm
- Wide optical lens
- 30 LEDs
- Controlled illumination
- 3 modes
- Polarised · Non‑polarised · Amber
Illumination
Different structures. Different light.
Dermoscopic structures can appear differently depending on how the skin is illuminated. M6 provides three illumination modes within a single instrument.
Cross-polarised
See beyond surface reflection.
Reduces surface glare to support visualisation of subsurface pigmentation, vascular patterns and other dermoscopic structures.
Non-polarised
Bring surface detail into view.
Supports visualisation of superficial structures including scale, keratin and other surface features during contact dermoscopy.
Amber 600 nm
Enhance pigment contrast.
600 nm amber illumination is designed to enhance contrast in pigmented structures within the lesion, providing an additional view alongside conventional polarised and non-polarised dermoscopy.
Optical performance
See the detail.
Real dermoscopic images captured through the DermLens M6 optical system.
Pigment & structure
Vascular & subsurface detail
Surface morphology
View the full gallery →
Dermoscopic images are presented for demonstration and educational purposes and should not be interpreted as diagnostic advice.
Modern dermoscopy
See more. Without getting closer.

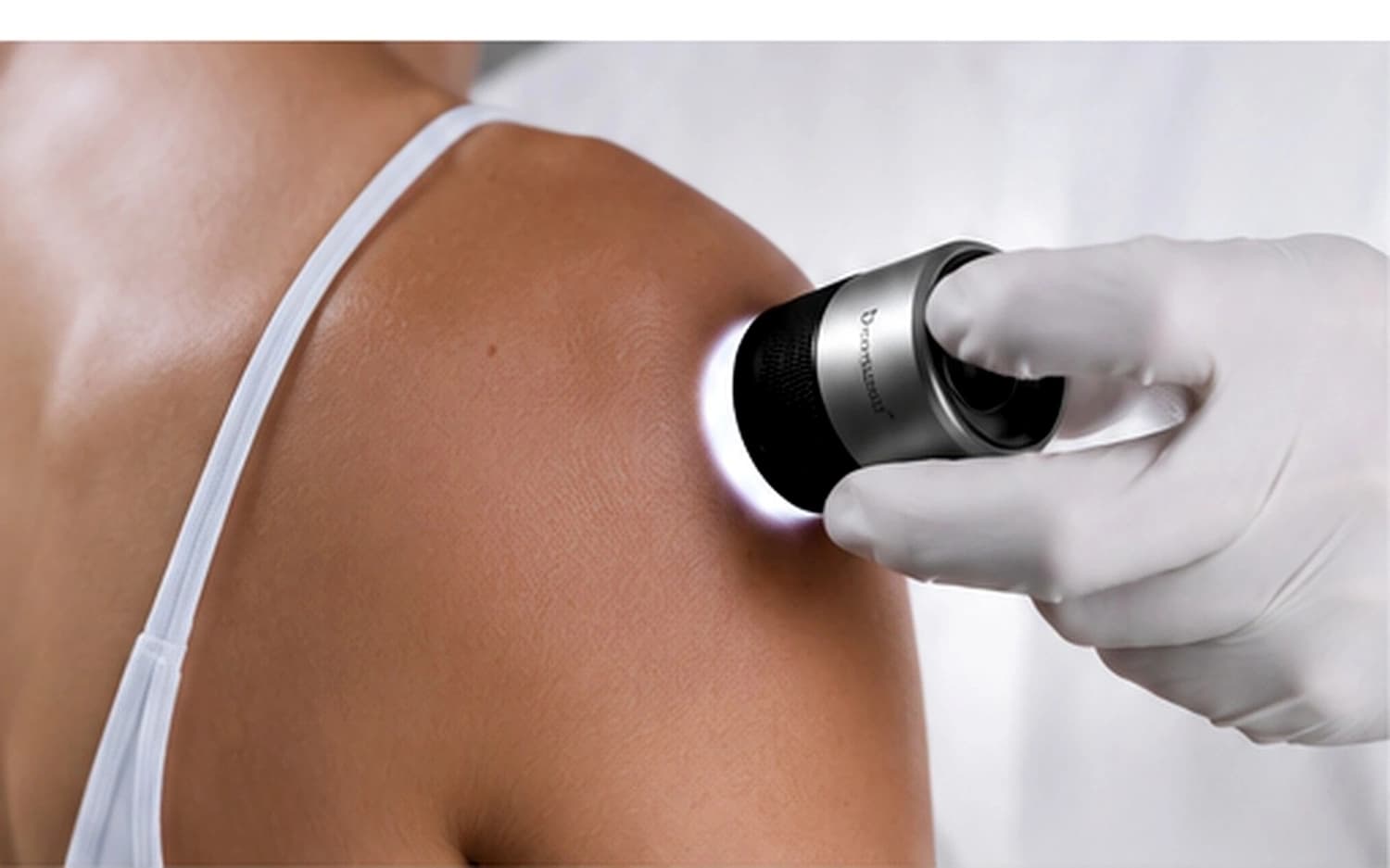

Traditional dermoscopy often requires the clinician to position their eye close to the dermatoscope — and therefore close to the patient.
DermLens M6 offers a more contemporary way to examine.
Two ways to connect.
Included

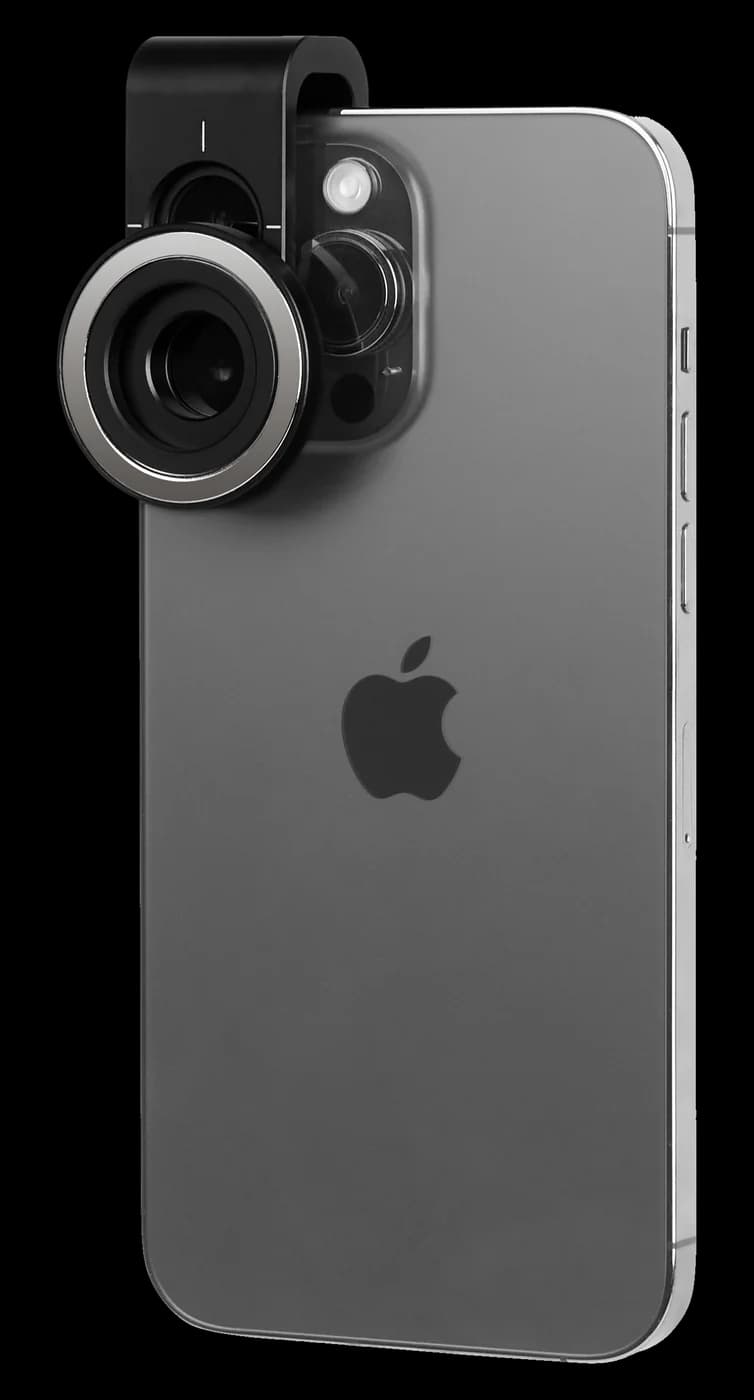

Universal smartphone adaptor
Every DermLens M6 includes a universal smartphone adaptor, giving clinicians the flexibility to connect M6 across a wide range of smartphones.
Add to basket →£75.00
Optional

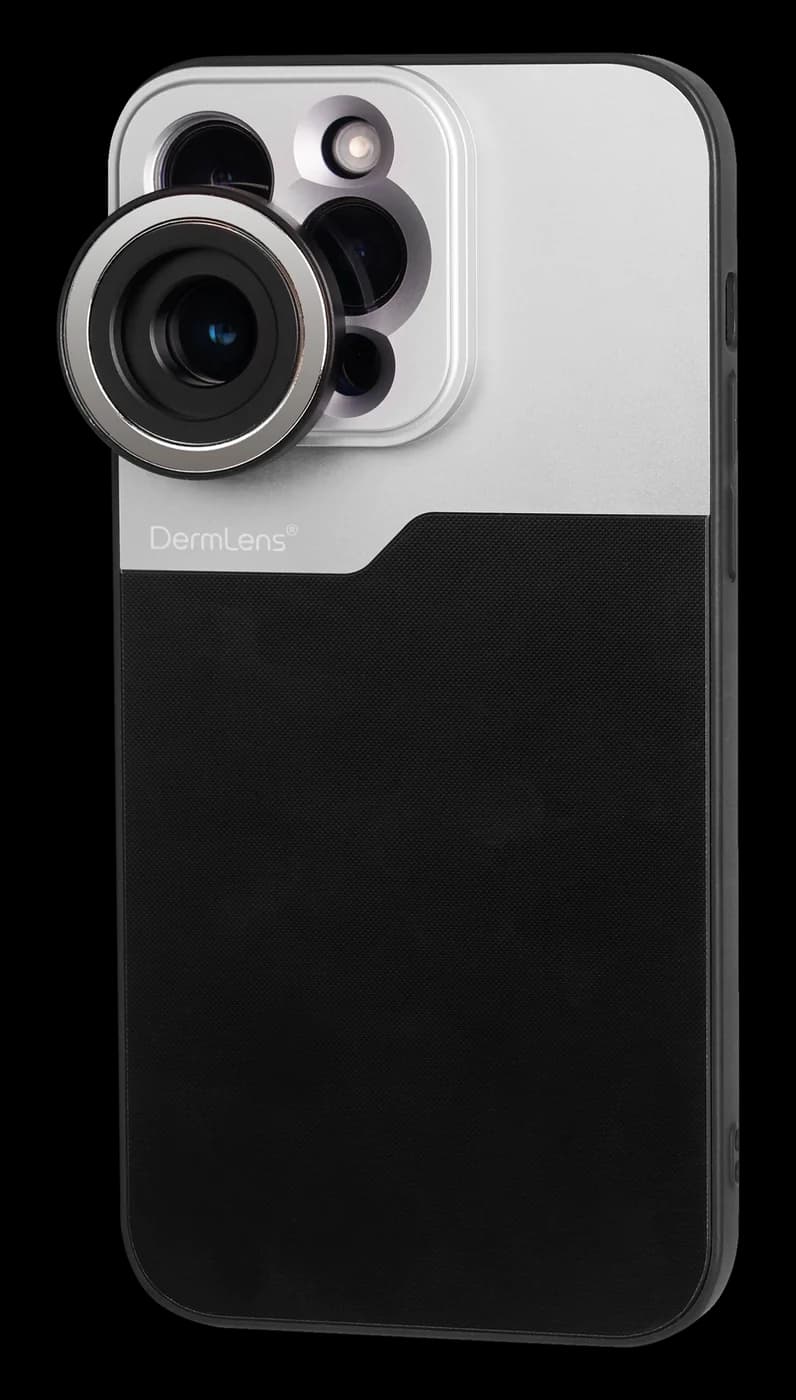

Dedicated phone case
For selected smartphone models, an optional dedicated DermLens phone case provides an even faster workflow. Keep the case on your phone, snap M6 directly into position and begin viewing.
Add to basket →£25.00
More comfortable for the patient.
More comfortable for the clinician.
More detail, directly on screen.
Smartphone dermoscopy
Snap.View.Magnify.Capture.
M6 is designed to make digital dermoscopy feel like a natural extension of the examination.
The magnetic smartphone interface allows you to move quickly from handheld dermoscopy to an enlarged on-screen view — without a dedicated camera system or complicated imaging setup.

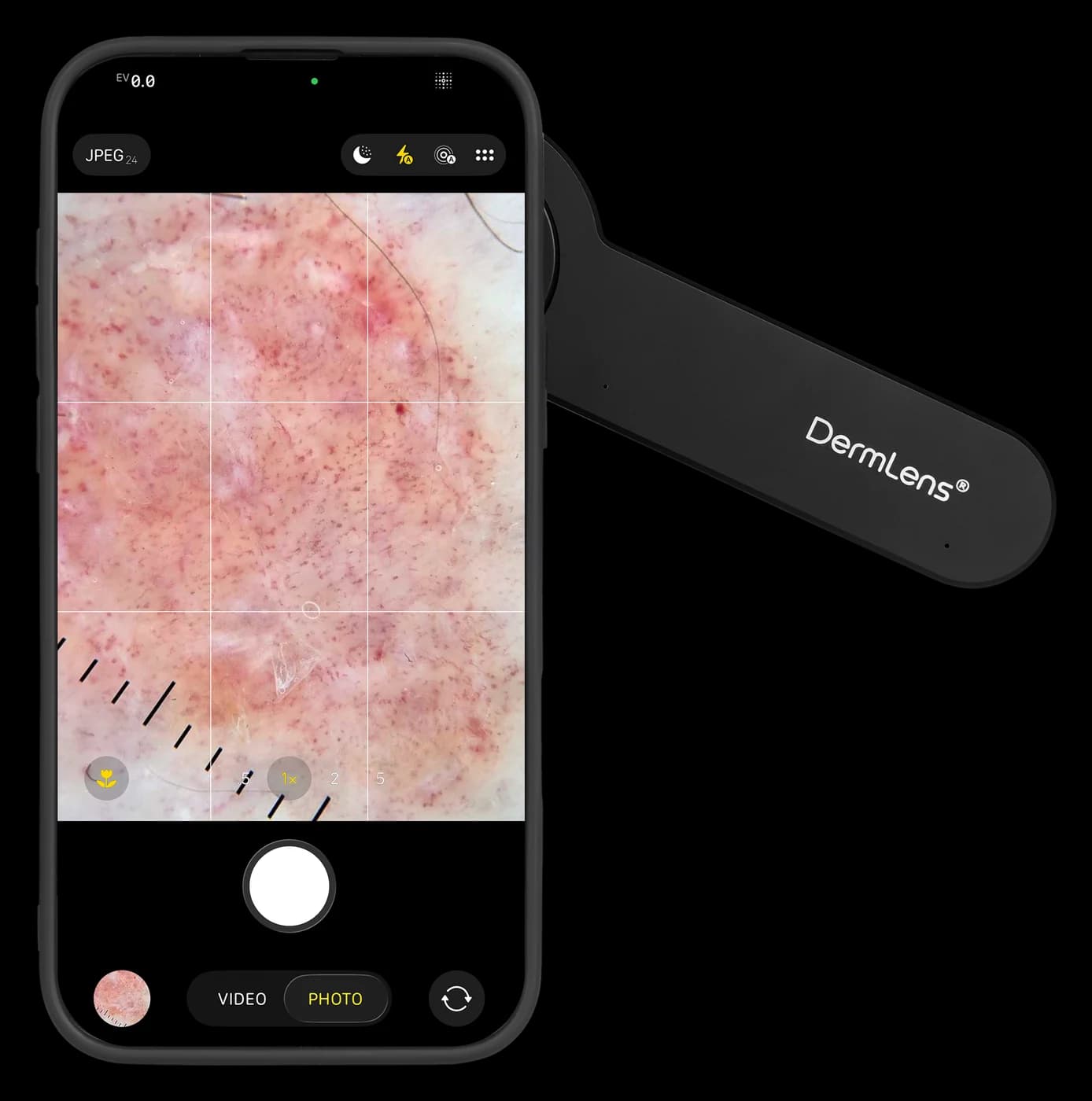

02 — View
Bring dermoscopy to the screen.
Bring the dermoscopic view directly to your smartphone screen, reducing the need for close clinician–patient proximity.
03 — Magnify
Take a closer look.
Enlarge the on-screen image to explore dermoscopic structures and areas of interest in greater detail.
04 — Capture
Document what you see.
Capture images when required for clinical documentation, comparison or an appropriate imaging workflow.
Dermoscopy, brought to the screen.
No app dependency. No dedicated camera system. Just M6, a compatible smartphone and a clearer way to examine, magnify and capture.
Clinical usability
Designedaround everydaydermoscopy.
M6 brings precision optics, multiple illumination modes and smartphone imaging together in a compact aluminium instrument designed for everyday clinical use.
From screen-based examination and image capture to conventional contact dermoscopy when required, M6 gives clinicians the flexibility to examine in the way that best suits the lesion, anatomical location and clinical situation.
01

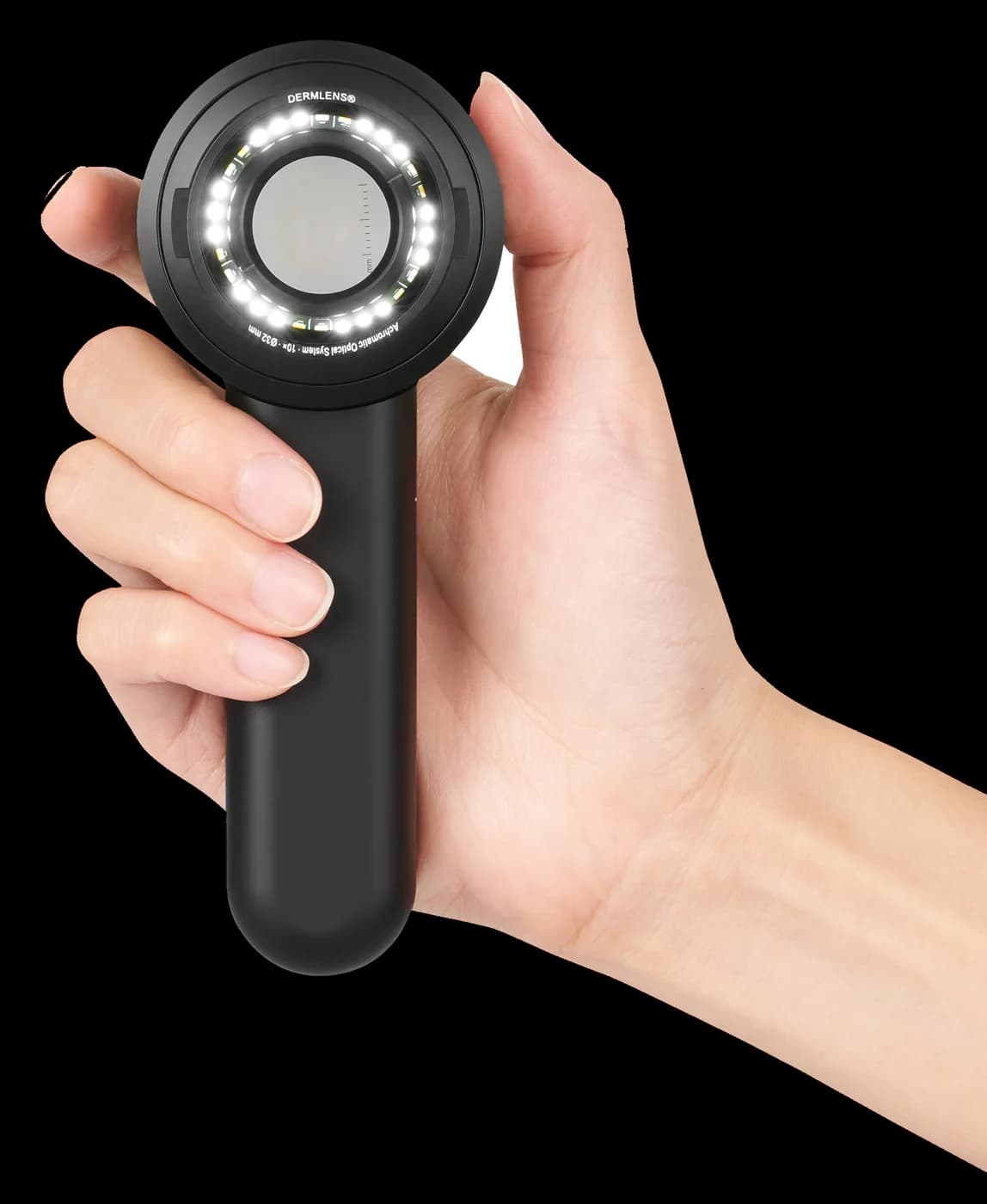

Compact by design
A compact handheld form designed to sit naturally in the hand and remain easy to carry between consultations.
02

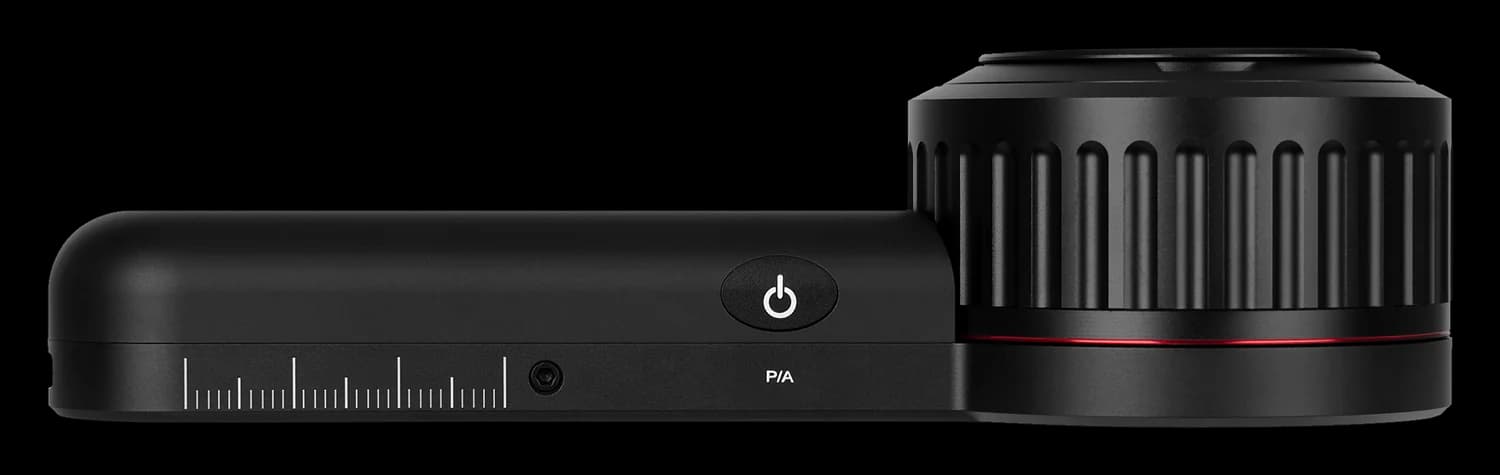

Integrated measurement scales
Measurement scales on both the contact plate and the handle of the dermoscope provide a convenient visual reference when assessing lesion dimensions during dermoscopic examination.
03
Intuitive controls
Switch between polarised, non-polarised and 600 nm amber illumination directly from the device, keeping the examination simple and focused.
04
Contact when required
Use M6 for contact dermoscopy when required, with the contact plate providing direct lesion contact and a measurement reference at the point of examination.
05
USB-C rechargeable
Simple USB-C charging keeps M6 ready for everyday clinical use without relying on disposable batteries.
06
Smartphone ready
Connect using the included universal smartphone adaptor, or snap M6 directly onto an optional dedicated DermLens phone case available for selected smartphone models.
Design
Purpose in every detail.
From the optical housing and illumination controls to the aluminium body and magnetic imaging interface, every element of M6 has been considered around the practical requirements of everyday dermoscopy.
30-LED illuminationIntegrated measurement scale
PolarisedNon‑polarisedAmber30 mm wide optical lens
Aluminium bodyCE & UKCA markedIn the box

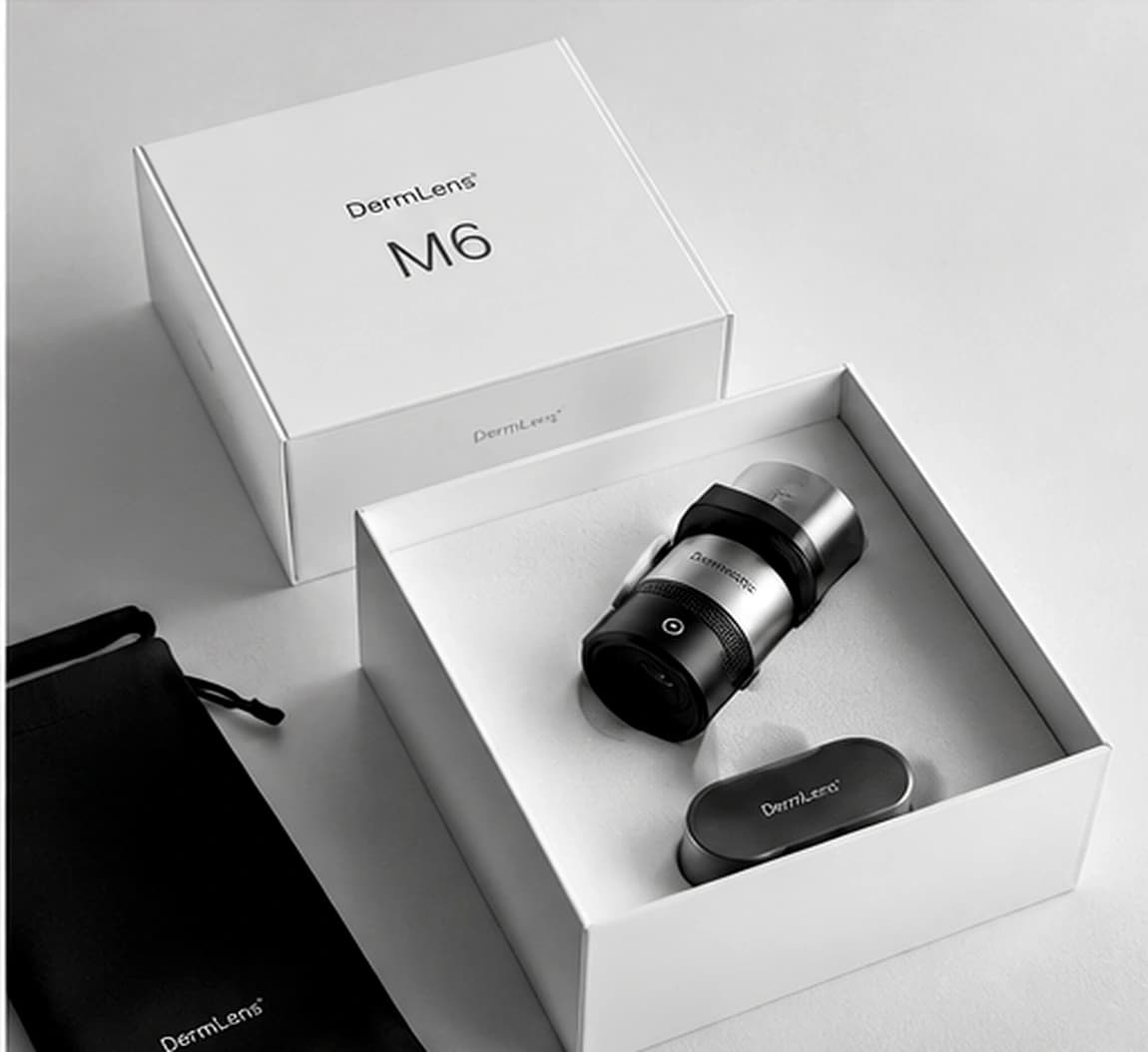

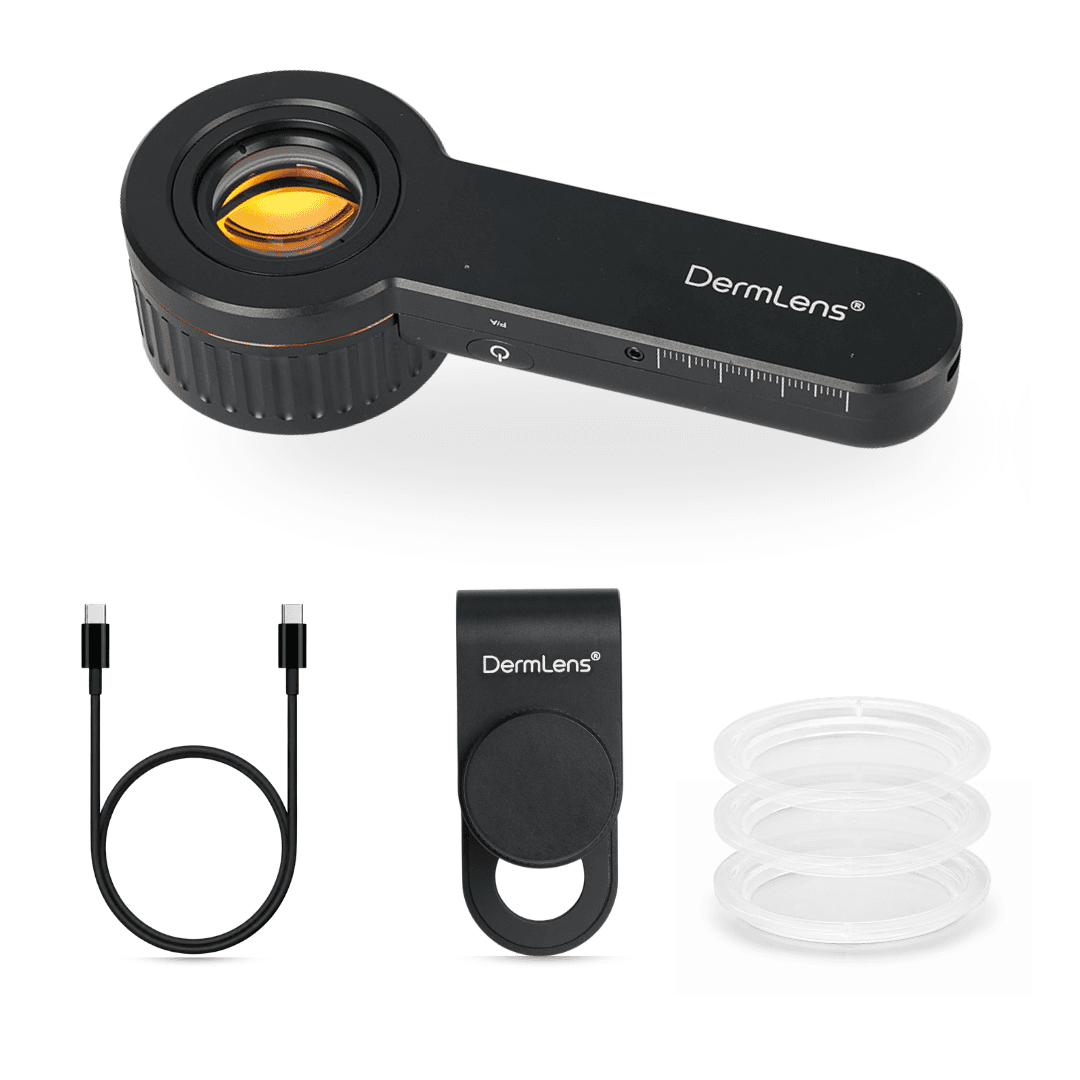

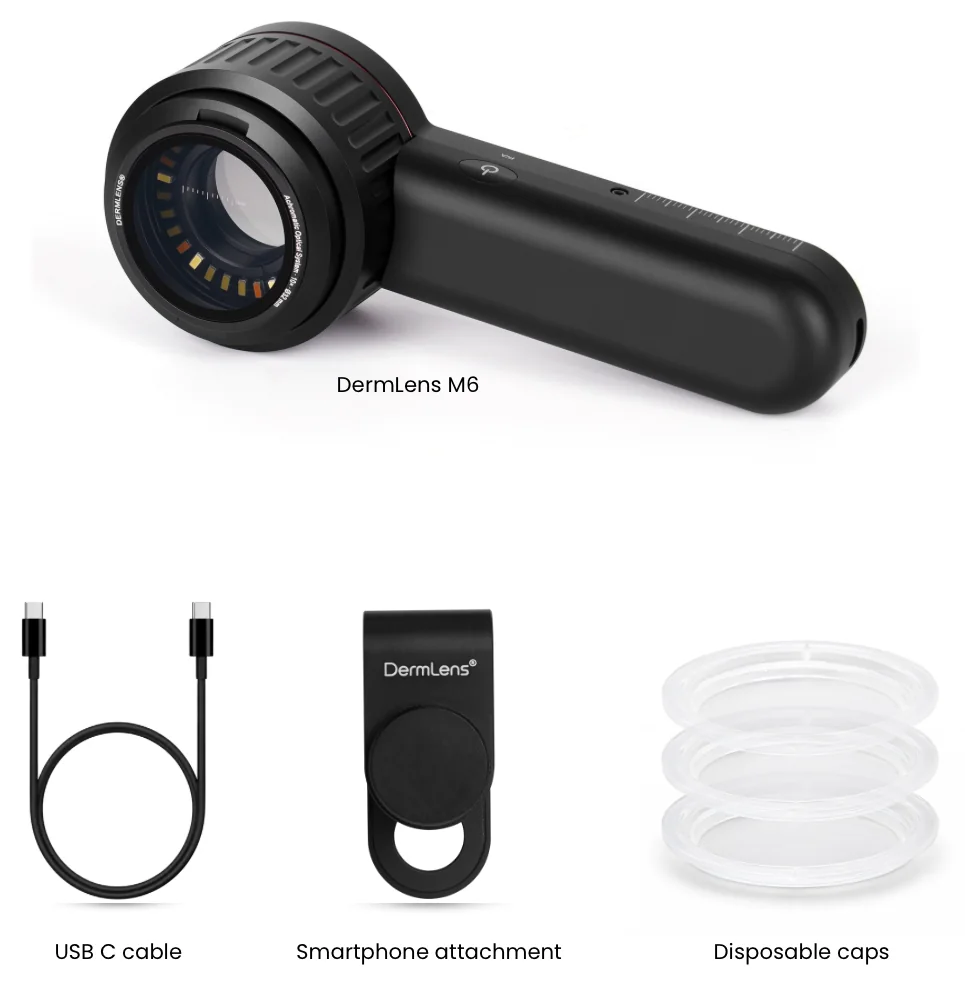

Ready for clinical practice.
- DermLens M6
- Professional 10× handheld dermatoscope.
- Magnetic smartphone adaptor
- For compatible smartphone image capture.
- Disposable contact caps
- Single-use contact option.
- USB-C charging cable
- Protective hard case
- Device Passport
- Individual product information accompanying your M6.
Technical specifications
The details that matter.
| Specification | DermLens M6 |
|---|---|
| Magnification | 10× optical |
| Optical lens | 30 mm |
| Illumination | 30 LEDs |
| Illumination modes | Cross-polarised · Non-polarised · Amber |
| Contact dermoscopy | Yes |
| Smartphone imaging | Yes |
| Smartphone connection | Magnetic adaptor |
| Construction | Aluminium |
| Charging | USB-C |
| Battery capacity | 1000 mAh lithium-ion |
| Battery runtime | 6–8 hours |
| Dimensions | Φ53 × H35 × L136.5 mm |
| Weight | 187 g |
| Regulatory status | MHRA registered. CE & UKCA marked. |
DermLens ownership
More than the instrument.
Register your M6 through the DermLens Owner Portal to bring your device information, warranty terms & conditions, and support resources together in one place.
Warranty
Register your device and access warranty information.
Documentation
Access Instructions for Use and product documentation.
Product training
Guidance covering setup, illumination modes, contact technique and smartphone capture.
Dermoscopy resources
Educational resources supporting appropriate dermoscopic practice.
Care & support
Cleaning, charging, maintenance and troubleshooting guidance.
Frequently asked questions
Dermoscopy, answered.
Is DermLens M6 polarised?
Yes. M6 provides polarised and non-polarised dermoscopy alongside an additional amber illumination mode.
What magnification does M6 provide?
M6 provides 10× optical magnification through a 30 mm optical lens.
Can M6 be used without a smartphone?
Yes. M6 is designed for direct handheld dermoscopic examination. A compatible smartphone can be attached when digital image capture is required.
Can I capture dermoscopic images with M6?
Yes. M6 connects to compatible smartphones using a magnetic adaptor, allowing images to be captured through the M6 optical system.
Does M6 support contact dermoscopy?
Yes. M6 supports contact dermoscopy using the appropriate contact component and interface technique.
Which smartphones are compatible?
M6 uses a magnetic adaptor designed for broad smartphone compatibility. DermLens dermoscopes can be linked to the smartphone in two ways — using a universal smartphone adaptor or mobile-phone-specific phone cases. Check if a phone case is available for your smartphone model on the accessories page.
What warranty is included?
DermLens M6 includes a 12-month warranty, extendable to 24 months following qualifying device registration.
DermLens M6
Professional dermoscopy. Built around the lens.
- 10× optical magnification
- 30 mm optical lens
- Polarised · Non-polarised · Amber
- 30-LED illumination system
- Contact dermoscopy
- Magnetic smartphone imaging
- Aluminium construction
- USB-C rechargeable
£1100
Dermoscopy, brought to the screen.
See more. Examine more comfortably. Capture when it matters.
